Common Permeable Paver Installation Failure Causes And How TRUEGRID Helps Prevent Them

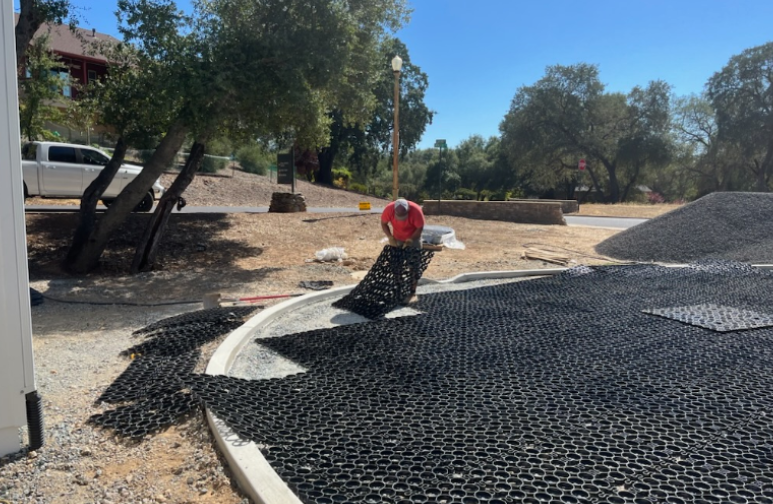

A permeable paver project can look right on installation day and still begin to fail months later. Settlement, rutting, shifting, drainage problems, erosion, and early repairs usually point back to decisions made before the first grid was placed. Understanding permeable paver installation failure helps homeowners, contractors, developers, and property managers prevent avoidable problems before they become expensive surface repairs.

Why Permeable Paver Installation Failure Usually Starts Below The Surface

Most paving problems start where the finished surface hides the real issue. The grid, infill, base stone, subgrade, drainage path, and geotextile fabric all work together as one system. If one layer is skipped, undersized, poorly compacted, or mismatched to the traffic load, the surface eventually shows the weakness.

Most failures are preventable when the base, drainage path, infill, permeable geotextile fabric, and product selection are planned as one pavement system. A strong permeable surface still depends on stable soil support, correct material selection, and water movement that fits the site. The best results come from planning the entire pavement section instead of treating the grid as a surface-only product.

TRUEGRID systems are designed to simplify that process by combining open-cell load distribution with practical installation guidance.

The product helps support drainage and surface stability, but the site still has to be evaluated correctly. Soil conditions, slope, traffic loads, water flow, and the intended use all shape the installation.

Common Installation Mistakes That Lead To Premature Failure

Many permeable paver installation mistakes follow the same pattern: something gets rushed below the surface, and the finished area pays for it later. The table below connects the most common field errors to the failures they can cause.

Installation Mistake	Likely Failure	Prevention Method
Inadequate base preparation	Settlement, rutting, uneven surface	Evaluate soil, excavate to the right depth, stabilize the subgrade, and use the proper base section
Poor compaction	Low spots, wheel ruts, surface movement	Compact the subgrade and base in controlled lifts
Improper drainage design	Ponding, erosion, poorly draining existing soil conditions	Evaluate the infiltration rate of the existing soils to match the site’s needs. Plan how water moves through the grid, into the base, and away from sensitive areas
Geotextile fabric separator missing, not porous, or not overlapped	Mixing and contamination of adjacent soils into base, weakening of base structure at perimeter, loss of structural support	Use geotextile fabric, overlapped, pinned if needed, and installed in the excavation floor and up the sides
Incorrect infill selection	Cell movement, reduced stability, poor infiltration	Use clean angular aggregate where specified
Wrong system for traffic load	Premature deformation or failure	Match the grid system to residential, commercial, sloped, or turf-use conditions

This cause-and-effect view is useful because permeable paver installation failure rarely comes from one vague problem. It usually traces back to a specific installation decision that can be corrected before the system is built.

Base Preparation And Compaction Control Long-Term Stability

The base carries the load before the surface ever does. If the subgrade, or prepared soil layer, is weak, the system can settle under repeated traffic. If the base is too shallow or uneven, vehicle loads can push the surface into low areas.

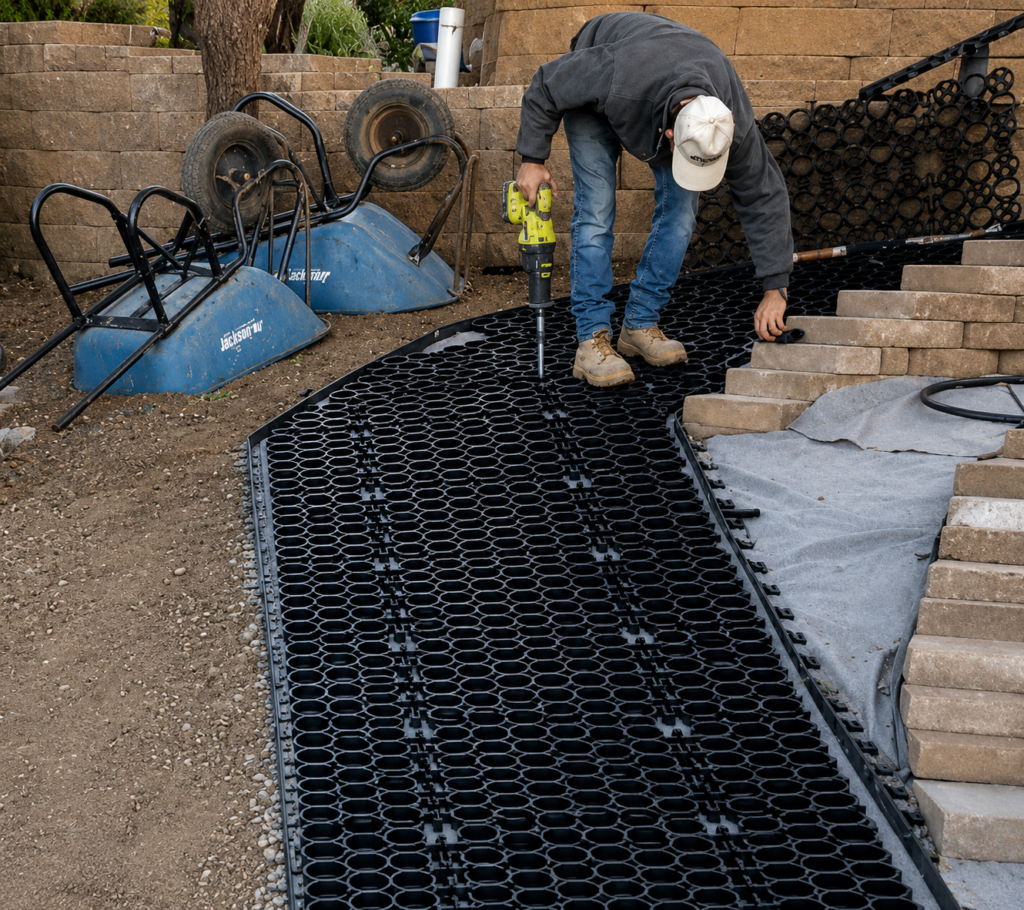

Proper permeable paving installation starts with site evaluation, excavation depth, soil conditions, and intended use. A patio, residential driveway, commercial parking area, and sloped vehicle surface do not place the same demand on the base. The base must match the project.

Compaction is one of the most common hidden failure points. Stone placed too thick at once may appear firm at the surface while staying loose below. Rutting and settlement usually appear at the surface after weak subgrade, shallow base stone, or loose lifts compress under repeated wheel loads.

Geotextile fabric does important work below the surface. It separates native soil from the base stone so fines do not migrate upward into the open aggregate. That separation helps protect both stability and infiltration over time.

Drainage Design Still Matters With Permeable Pavers

A permeable surface lets water pass through the top layer. The project still needs a drainage path below that surface. Water must move through the grid, into the stone base, and into the soil or an approved outlet without weakening the pavement section.

Poor drainage planning can create the same symptoms people expect permeable paving to solve. Water may collect in low spots, erode edges, saturate weak soil, or move toward structures. Those conditions can turn a drainage feature into a pavement problem.

This is where site evaluation matters. Grades, roof runoff, nearby foundations, soil infiltration, and stormwater flow all affect the design. TRUEGRID’s work with drainage failures in traditional pavement systems reinforces the same core point: surface water management has to be handled as part of the full system.

Permeability helps, but it cannot make up for a poorly planned drainage path. A successful installation gives water a controlled route through and away from the paved area.

Use of Permeable Geotextile Landscape Fabric or Loading and Separation

Placement, proper overlap or connection, and pinning of a geotextile fabric can add to long-term success and reduce potential problems with both the components in the permeable system and adjacent soils.

The use of open-graded clean stone as a base in a permeable paver system, adjacent to existing soils or engineered soils of a different type, will require separation to prevent contamination of the base layer.  Geotextile fabrics prevent smaller particles from entering the base layer, potentially clogging the system and weakening of the adjacent soils, preventing collapse.

The separation of the un-like materials, prevents contamination for both the floor and the walls of the excavated area into the base layer (and fill) of a TRUEGRID system.

Placing the fabric all the way to grade, next to the height of the permeable grid system, will also prevent the fill material from migration and mitigate soil and vegetation from contaminating the clean stone infill of the grid.

An additional benefit of a geotextile filter fabric can be seen in the lessening of the occurrence of weeds or unwanted vegetation.

The Grid Must Match The Expected Load

A walking path, residential driveway, and commercial parking area place very different demands on a permeable grid. Traffic load, vehicle weight, turning movement, slope, and frequency of use all affect product selection. Ignoring those conditions can create permeable paver installation failure even when the base and surface look clean at the start.

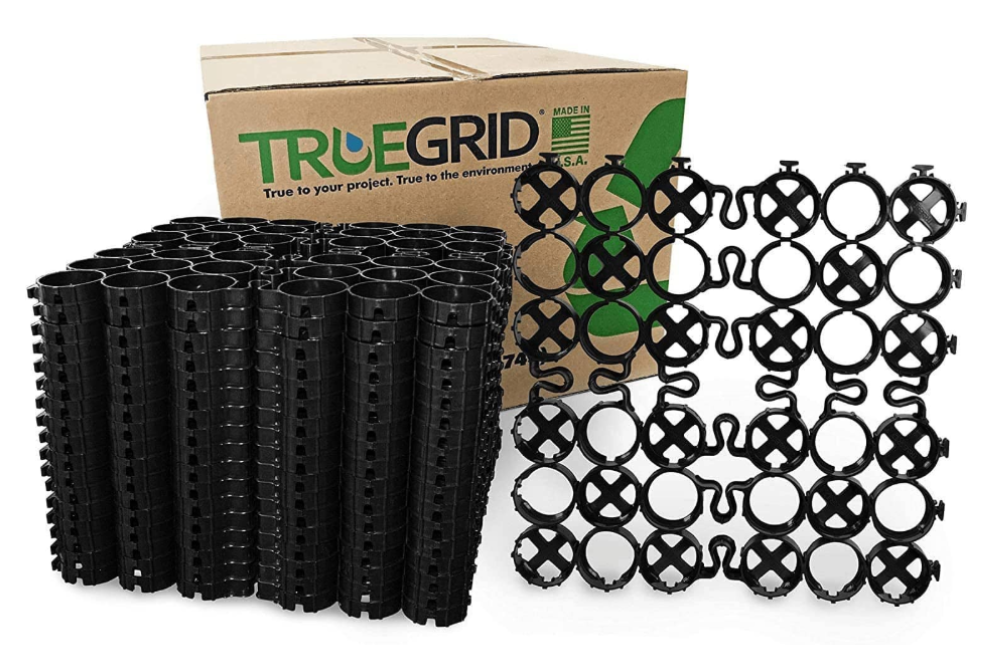

TRUEGRID’s product guidance separates lighter residential uses from heavier vehicle applications. PRO LITE is suited to lighter residential use, while PRO PLUS is the better fit for heavier loads, vehicles, and sloped driveways. That distinction matters because load distribution depends on the full system being matched to the job.

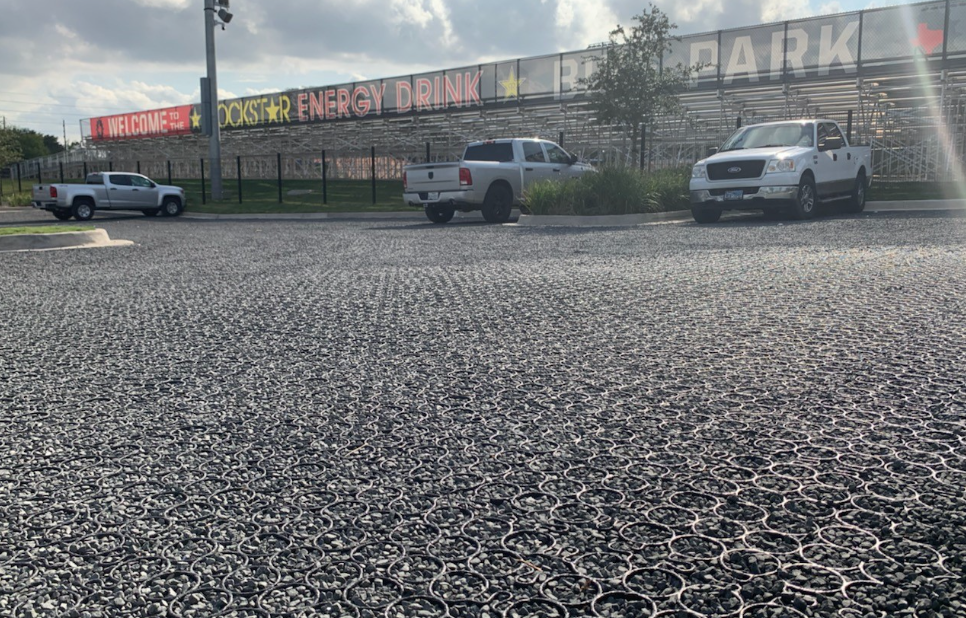

Commercial and multi-use sites need especially careful planning. Parking areas, access drives, equipment routes, and fire lanes may carry loads and higher traffic frequencies that a basic residential surface would not see. The comparison of commercial paving methods is useful here because it keeps the focus on pavement performance, preparation, drainage, and long-term maintenance.

Some projects are not gravel-filled vehicle surfaces at all. Turf and grass stabilization applications need their own installation approach. TRUEGRID ROOT installation follows a process designed for existing grass applications, including surface preparation, rut repair, trimming, and pinning where needed. TRUEGRID PRO PLUS grass infill installation and TRUEGRID PRO LITE grass infill installation components and installation methods are adjusted to provide drainage, load capacity, and grass growth.

How TRUEGRID Helps Reduce Installation Failure Risk

TRUEGRID reduces installation-related risk by pairing an open-cell grid with practical installation guidance.

Open-Cell Design And Installation Guidance

The open-cell grid distributes loads across the surface. The permeable structure allows water to move through the pavement section instead of forcing runoff across the top.

That structure gives installers fewer chances to guess. TRUEGRID guidance turns those variables into a practical sequence: check drainage, prepare the site, place the fabric,  build the base, select the infill, restrain the perimeter (if needed), add drainage( if needed), and match the system to the application. Those details help installers avoid choices that can lead to settlement, rutting, shifting, erosion, and premature repair.

Performance Depends On The Whole Installation

Together, those steps help the finished surface stay aligned, keep infill seated, and move water through the pavement section as intended. This does not mean the product replaces good installation practice. It means the grid performs best when the installation supports the way the system manages load and water.

When the site is evaluated correctly, the base is built properly, the infill is selected well, the perimeter is restrained, and the right grid is chosen, the risk of permeable paver installation failure drops significantly because the product is supported by the full installation.

Installation Quality And Product Quality Work Together

A permeable paver system should be judged as a complete pavement section. The surface grid matters, but so do the layers below it. Subgrade stability, geotexile fabric, base stone, compaction, water movement, edge restraint (if needed), infill, and traffic load all affect long-term performance.

That pattern shows up in most failed installations: the visible damage may be rutting, settlement, shifting, drainage trouble, or erosion. The actual cause is usually a decision made during planning, material selection, or installation. TRUEGRID gives property owners and installers a clearer path from site conditions to product choice, helping prevent permeable paver installation failure from becoming a costly surprise after the project is complete.

Find The Right TRUEGRID System For Residential And Commercial Projects

TRUEGRID offers engineered permeable paver systems for residential, commercial, and turf stabilization applications. The right solution starts with the site, then accounts for traffic, drainage, and the way the finished surface will be used. TRUEGRID helps simplify the path from planning to installation by giving each project a clear structure for base preparation, infill, drainage, and product fit.

When the system matches the site, permeable paving can support long-term durability, stable load distribution, and practical stormwater management. Contact us today to discuss the best permeable paver option for your next residential or commercial project.

A permeable grid surface can look finished on day one and still develop rutting, shifting, or standing water if the system below it was not built for the site. Those problems can lead to repair costs, drainage complaints, uneven driving surfaces, and premature replacement. The most common permeable grid paver problems usually trace back to product selection, site preparation, installation quality, and maintenance.

Common Permeable Grid Paver Problems And What Causes Them

The most common permeable grid paver problems are rutting, shifting, drainage loss, clogging, cracking, erosion, and inadequate load support. The visible issue may show up at the surface, but the cause often sits in the soil, base, aggregate, drainage path, grid material, installation method, or traffic load.

A reliable permeable grid surface depends on the subgrade, base, aggregate, and grid working together. The subgrade must support the system, the base must drain and distribute load, the aggregate must stay open enough for water movement, and the grid must be suited to the vehicles and use pattern expected on the site.

Problem	Common Cause	Prevention Method
Rutting	Weak subgrade, shallow base, poor compaction, or traffic loads that exceed the system design	Prepare the soil, install the correct base depth, compact the aggregate, and match the grid to the load
Shifting	Poor interface with adjacent material, rounded gravel base, loose rounded fill, or repeated turning pressure	Use angular aggregate, stable edges, correct fill, and a grid system that locks the surface together
Poor Drainage Performance	Contaminated base stone or fill, poor soil permeability, clogged surface voids, or no drainage outlet or low rates of sub-soil infiltration	Use clean washed aggregate, protect the base from fines, and plan a drainage path for slow-draining soils. Adjust base depth for more detention
Clogging	Leaves, sediment, soil wash-in, or fine particles entering the open aggregate	Keep debris off the surface and avoid sand or fines in the base and fill
Cracking	Lower-grade grid material, poor support below the grid, or extreme load stress beyond the product’s intended use	Choose a durable, load-matched grid and install it over a compacted base with proper depth for loading
Erosion	Uncontrolled runoff, slope movement, rounded stone use, unstable edges, or soil migration into the stone base	Control grading, use separation fabric, stabilize edges, and manage water movement
Inadequate Load Support	The grid and base were selected for lighter use than the site receives	Select the grid, base depth, and aggregate for the actual vehicle type and frequency

Why Rutting And Shifting Usually Start Below The Surface

Rutting and shifting are different surface symptoms, but both point to support or movement problems below the finished surface.

Rutting Starts With Weak Support

Rutting usually begins when traffic loads press into a base that is too weak, too shallow, or poorly compacted. Once the support layer stops distributing weight evenly, tires follow the low spots and deepen the rut over time.

A geotextile fabric addition also adds to the loading capacity.

Shifting Starts With Lateral Movement

Shifting happens when the surface lacks lateral stability. Rounded gravel can roll under pressure, loose fill can migrate, and weak edges can allow the grid field to move during turning or braking. Edge restraint is especially important on driveways, parking lanes, sloped areas, and any place where vehicles turn repeatedly.

Proper subgrade preparation starts surface stability before the grid is placed. A dry, stable subgrade, compacted angular stone base, and proper geofabric separation where specified help reduce the risk of rutting, shifting, and soil mixing into the base.

Using a fabric separator for the walls and the floor of the excavated volume will prevent intermixing of unlike materials reducing shifting at the perimeter and the floor.

How Drainage Performance Breaks Down

Drainage performance depends on a connected path through the surface, the aggregate, the base, and the outlet or soil below it.

Blocked Drainage Paths

Poor drainage performance is one of the most frustrating permeable grid paver problems because the system may have been chosen specifically to reduce runoff. Water needs a clear route through the surface, into the aggregate, and then through the base or away from it. If any part of that path is blocked or undersized, ponding and slow drainage can appear.

Clogging From Fines And Debris

While noticeable clogging is rare in a well installed grid paver system, it can occur. Fine soil particles, airborne dust, leaf debris, organic matter, sand, and sediment can block open voids in the surface or base. Clean washed aggregate supports stormwater management because it preserves open space for water to move through the pavement structure instead of blocking that structure with fines.

Slow-Draining Soil Conditions

Soil conditions also affect drainage. Heavy clay or other slow-draining subgrades may need a designed outlet, perforated pipe, or sloped base to move water away. Without that drainage plan, water can collect below the surface, weaken support, and contribute to rutting or erosion. Adding additional depth to the base layer can help with the time of concentration for the infiltration of high clay content, poorly draining, or saturated soils.

How Erosion, Cracking, And Material Quality Affect Performance

Erosion and cracking usually show up after water movement, edge support, material quality, or load conditions have already started working against the surface.

Erosion Starts With Uncontrolled Water Movement

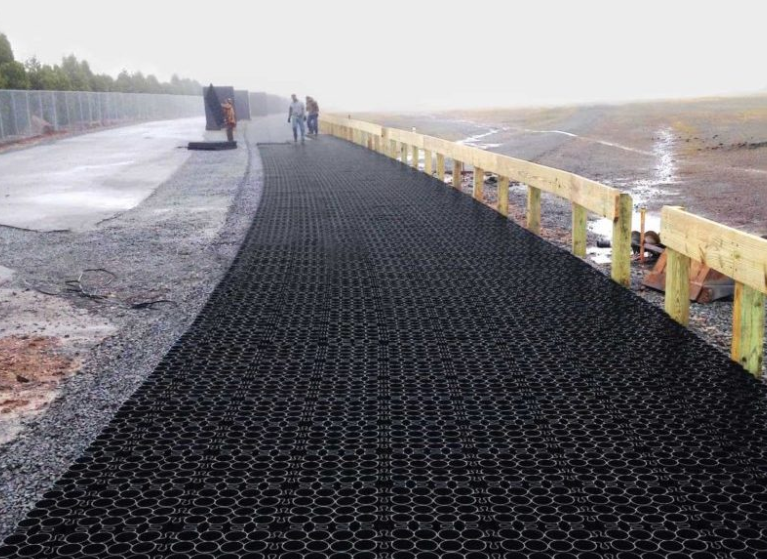

Erosion can develop when water moves around or over the system instead of through it. Sloped sites, exposed edges, and poorly graded areas can allow runoff to wash soil away from the base or pull loose material from the surface. Once edges become unstable, shifting and settlement become more likely.

Material Quality Affects Cracking And Deformation

Cracking is different with grid systems because they do not behave like poured concrete. Lower-grade or poorly supported grid materials may crack or deform when exposed to traffic loads beyond their intended use. Cracking can also show up around adjacent hardscape, borders, or transition areas when the base does not support movement evenly.

These permeable grid paver failures usually point back to design fit. The surface must be built for the site, and the grid must be specified for the traffic it will carry.

Certain materials used in grid paver manufacturing are also more prone to cracking a deformation.  Use of HDPE as the primary resin can mitigate most any detrimental effects associated with other polymers used in manufacturing.

Why Load Support And Grid Selection Matter

Load support combines traffic expectations, grid selection, material quality, and base design.

Traffic Load Comes First

A permeable grid system should be selected for the traffic it will carry, not just the square footage it will cover. A residential walkway, a home driveway, a commercial parking area, and an access lane for heavier vehicles place different demands on the grid and base. Choosing a light-duty system for a heavier-use surface increases the risk of deformation, movement, and early repair.

Load Distribution Depends On The Grid And Base

Load distribution is the way traffic pressure spreads across the grid and compacted base. That spreading helps reduce concentrated tire pressure in one narrow track. If the grid is too weak, the base is too shallow, or the aggregate is unstable, the system loses that load-spreading function.

Certain existing soil types are also better suited for loading and may not need as much base as structurally weak soils may require.

Material Quality Affects Durability

Material quality also affects durability. A weaker grid can lose cell shape, crack, or deform under repeated traffic, especially when the base below it is not prepared for the actual load. A load-matched grid still depends on the right base, but it gives the system a better structural starting point.

Product selection carries that load-support decision into the planning stage. Residential DIY permeable pavers require planning around soil, slope, base depth, aggregate, and drainage before installation begins. Larger or heavier-use projects need the same logic applied with a more demanding traffic profile.

Installation Details That Help Prevent Failure

Good installation reduces many permeable grid paver problems before they start. The most important installation checks include:

• clean angular stone that can compact and interlock
• checked drainage and edge conditions before traffic use
• a level surface before grid placement
• correct fill and final compaction

Geofabric or geotextile can also matter when the site needs separation between soil and base stone. If fine soil migrates into the aggregate, the base can lose storage space and drainage capacity. That contamination can also weaken the support layer and increase the chance of rutting.

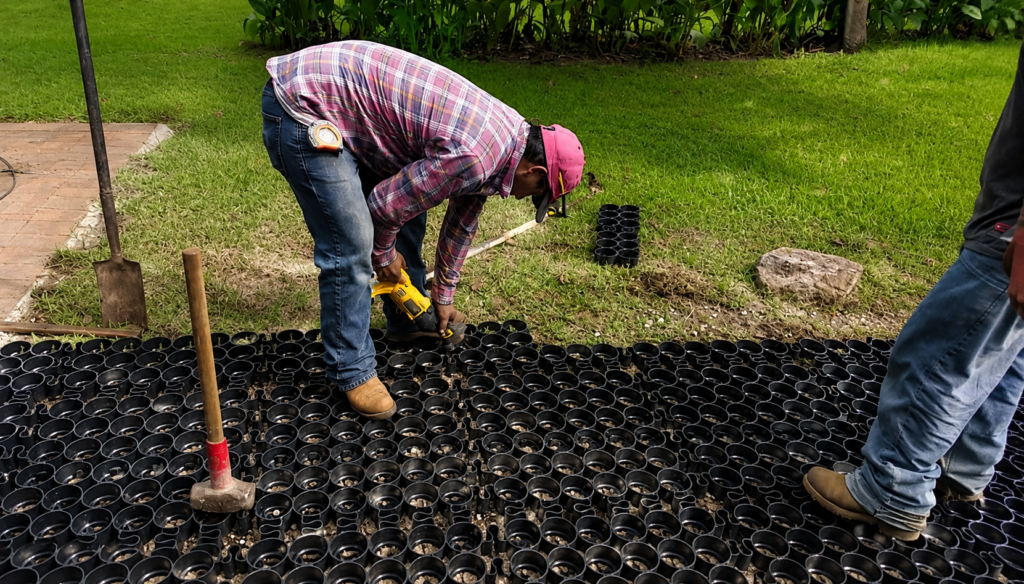

The installation sequence should keep the surface level, compacted, and filled correctly. Proper permeable paving installation uses compacted crushed stone, clean washed aggregate, geotextile fabric support and edging, and final compaction to help the finished system support traffic and maintain drainage.

Maintenance Protects Long-Term Drainage And Stability

Maintenance should not be treated as a sign that the system is weak. It is part of keeping any permeable surface open and functional. Leaves, mulch, soil wash-in, and jobsite debris can accumulate over time, especially near planting beds, slopes, construction areas, and unpaved shoulders.

Routine care keeps stormwater moving by keeping the surface open. Property owners should:

• remove debris before it settles into the aggregate
• limit sediment wash-in from nearby soil or mulch
• restore displaced aggregate when needed
• watch for low spots before they grow

Maintenance also gives property managers and developers a way to catch problems early. A small area of movement or pooling can point to an edge, drainage, or base issue that should be corrected before it spreads. Those clues also help during planning because they point to the loads, water movement, and edge conditions the system must handle.

What To Check Before Choosing A Permeable Grid System

The best planning questions focus on site conditions, expected traffic, drainage, and long-term maintenance before the system is purchased or installed. The goal is to match the surface to the site instead of assuming every grid works the same way.

The planning review should cover:

• Confirm the expected traffic load, including vehicle weight, turning movement, and frequency of use.
• Match the grid product to residential, commercial, or heavier-use traffic conditions.
• Evaluate the soil so the base and drainage path fit the site conditions.
• Specify the correct base depth for the intended use.
• Use clean angular aggregate instead of rounded stone or material with fines.
• Plan and install geotextile separation.
• Include edge restraint where lateral movement, slopes, or turning pressure could affect the surface.
• Choose a grid system designed for the application rather than selecting only by price or appearance.
• Plan routine preventative maintenance to protect infiltration and prevent clogging.

This checklist applies to homeowners, contractors, property managers, and developers. The scale changes from a driveway to a commercial property, but the performance logic stays the same.

How TRUEGRID Helps Address Common Failure Points

TRUEGRID systems are built around the same failure points discussed above: load support, gravel stabilization, drainage, and long-term surface performance. The grid structure helps hold aggregate in place, while the compacted stone base supports vehicle loads and preserves space for stormwater movement.

Avoiding permeable grid paver problems still requires proper site preparation. An engineered grid cannot overcome a weak base, poor drainage path, contaminated aggregate, or a product mismatch for the traffic load. Performance comes from pairing an engineered grid design with load-matched product selection and installation practices that keep the aggregate base open and stable.

For homeowners, that may mean a driveway that manages runoff without the loose movement of ordinary gravel. For contractors and developers, it may mean selecting a system and base design that can support the intended traffic while preserving infiltration. Both uses depend on the same performance priorities: stable aggregate, managed stormwater, and predictable long-term surface behavior.

Choose TRUEGRID Permeable Paving Systems For Long-Term Performance

The best way to avoid surface failure is to match the paving system to the site, the soil, the water, and the traffic load before installation begins. TRUEGRID offers engineered permeable paver systems designed to stabilize aggregate, support drainage, and distribute loads when paired with the proper base and materials. Contact us today for solutions for residential driveways, commercial parking areas, and heavier-use sites.
