Sample Pack – PRO PLUS®

$38.00

Quantity

$38.00

Get a sample pack today to try first-hand how permeable pavement works!
In your sample pack, you will receive:
2 pieces of the TRUEGRID PRO PLUS
1 Catalog

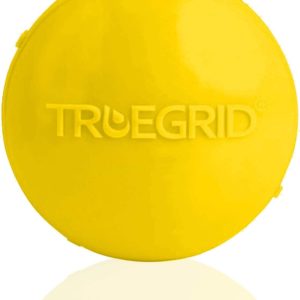

1 Yellow SuperSpot

Call or Email for VOLUME PRICING over Square Feet

1-855-355-GRID or Get a Quote

Secured by PayPal
Category:

INSTALLATION BASICS

Base Preparation

  • Grade project area to height of grid and sub-base (see details below)
  • Lay sub-base if needed. A proper TRUEGRID installation requires consideration of sub-base needs.
  • For Gravel or Grass applications, refer to our cross section drawings below, or visit our Technical Info page

Laying Grid

  • Start in corner of project area with male tabs of first grid facing towards the center of the area
  • Line up female slots of next grid over male tabs of first grid. Press down with feet to lock grid into place.
  • Repeat until area is covered with connected grid.
  • Gravel Fill: Fill grid with desired aggregate to top of grid. Lightly compact to settle.
  • Grass Fill: Fill grid with soil and seed or sod.

DECO™

Residential Decor

Ribbon Driveways

Pathways and Trails

Stepping Stone Compatible

Dimension
24" x 24" x 1.8" (4 sf)

Cell Width
3-3/8”

Weight
3.75 lbs per grid

Permeability
100%

Compressive Strength
TBD - by stone paver

Load Capacity
H20/ HS20 rating with vehicle-load rated stone paver

Material
Recycled High Density Polyethylene (100% post-consumer)

Color
Black with UV Stabilizer

Temperature Range
Dimensionally Stable for -58F to 194F

ADA Compliant
Yes

Environmental Compatibility
non-toxic, harmless to plants, animals, and microorganisms. Inert material, groundwater neutral.

Installation Speed
1,000 sf per man-hour

Pre-Assembled
16 sf (4'x4') sheets (4 grids per sheet)

Pallet Content
384 sf = 24 sheets per pallet = 96 grids

Pallet Dimensions
48”x 48” x 49”

Approximate Pallet Weight
680 lbs

Truckload
48 pallets or 18,432 sf

ECO™

Residential / Lite Commercial

Pathways and Bike Trails

Grass Pavement

Residential Driveways

Dimension
24" x 24" x 1" (4 sf)

Cell Width
3-3/16”

Weight
2.53 lbs per grid

Permeability
100%

Compressive Strength
6,200 psi with aggregate fill

Load Capacity
Exceeds H20/ HS20 rating

Material
Recycled High Density Polyethylene (100% post-consumer)

Color
Black with UV Stabilizer

Temperature Range
Dimensionally Stable for -58F to 194F

ADA Compliant
Yes

Environmental Compatibility
non-toxic, harmless to plants, animals, and microorganisms. Inert material, groundwater neutral.

Installation Speed
1,000 sf per man hour

Pre-Assembled
16 sf (4'x4') sheets (4 grids per sheet)

Pallet Content
672 sf = 42 sheets per pallet = 168 grids

Pallet Dimensions
48" x 48" x 48"

Approximate Pallet Weight
472 lbs

Truckload
48 pallets or 32,256 sf

PRO PLUS

Commercial Use

SuperSpot Compatible

Parking Lots

Heavy Loads

Dimenson
24" x 24" x 1.8" (4 sf)

Cell Width
3-3/8”

Weight
5.22 lbs per grid

Permeability
100%

Compressive Strength
8,000 psi with aggregate fill

Load Capacity
Exceeds H20/ HS20 rating

Material
Recycled High Density Polyethylene (100% post-consumer)

Color
Black with UV Stabilizer

Temperature Range
Dimensionally Stable for -58F to 194F

ADA Compliant
Yes

Environmental Compatibility
non-toxic, harmless to plants, animals, and microorganisms. Inert material, groundwater neutral.

Installation Speed
1,000 sf per man hour

Pre-Assembled
16 sf (4'x4') sheets (4 grids per sheet)

Pallet Content
800 sf = 50 sheets per pallet = 200 grids

Pallet Dimensions
48” x 48” x 95”

Approximate Pallet Weight
1,082 lbs per pallet

Truckload
24 pallets or 19,200 sf
