100% land utilization. Storm water detention in sub-base.
truegrid slide1 new2 Home
Grass or Gravel Filled. Paving the Future.
truegrid slide2 new2 Home
Durable. Cost Efficient. Easy to Install.
truegrid slide3 new Home
overslider Home

RESIDENTIAL

COMMERCIAL

ADA Compliant



We are proud to offer a sustainable solution to the city of Refugio and the members of our community. The new truck parking area is environmentally safe and controls erosion.

  (Richard S.-, Senior Vice President of Facilities)

It was wonderful working with TRUEGRID on this new environmentally friendly parking lot project from start to finish. This is great for our community, and the parking lot is designed for longevity and sustainability.

  (Joey H. – Mayor)

We were able to efficiently put in quality ADA compliant pathways with TRUEGRID while maintaining a natural look that fit our landscape.

  (Ray F – National Parks Services)

Our trucks and equipment don’t get stuck anymore when it rains. The grid keeps us working.

  (David “Boo” B. – Facilities Manager – Oil & Gas Field Services)

TRUEGRID is the only way we’ll build our lots from now on. It handles the loads and saves us money in the long run.

  (Martha W. – Buyer -Fuel Transportation Company)

The grid goes in fast and eliminated the retention pond. Client loved it!

  (Cody B. – Owner / Construction)

Super easy to install! Love the results! I will send photos!

  (Gregg M. – New Orleans DIY’er)

We were worried about using asphalt for this truck lot in the hot South Texas sun. The grid replaced 8” asphalt, the truckers like it because it’s cool and it’s easier on their tires. The client saved 6 figures and we won the bid.

  (Joe A. – Owner /Paving contractor)

Low Impact Development (LID) is important to us. Our engineers and the city agreed TRUEGRID was the way to go.

  (Jim T. – Developer)

cover new Home

Featured Project

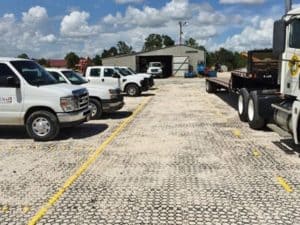

Texas Commercial Truck Parking Lot
Click photo to read more.

To view other projects click here..



B’s knees and TRUEGRID

[Posted August 15 2014 by: Barry Stiles]

Any runners out there prefer to run on concrete? Pound the pavement? Well guess what- the pavement pounds back! Just ask the knees, hips or back of any runner or jogger. My joints may not be talking to you, but after a long run they scream at me.

Read more about B’s knees and TRUEGRID>>

What is TRUEGRID?

TRUEGRID permeable pavers are the strongest, most durable eco-friendly alternative to concrete and asphalt. Made from 100 % post-consumer recycled HDPE, TRUEGRID supports heavy equipment and traffic. TRUEGRID is a stormwater management tool that benefits Water Quality, Water Supply,and Flood Control. Grass or gravel filled TRUEGRID allows 100% land utilization , providing under the surface detention/retention. No matter what low or high traffic area you have, your durable, green, and inexpensive solution is TRUEGRID Permeable Pavers.  True to your project. True to the environment.

Applications

  • Parking lots
  • temporary staging areas
  • job sites
  • overflow parking
  • storm water management
  • driveways
  • taxiways
  • freight yards
  • muddy parking solution
  • ranch driveways
  • bus parking
  • golf cart paths
  • fire lanes
  • emergency vehicle access roads
  • green space
  • oil field roads / parking
  • concrete alternative
  • heavy equipment parking
  • livestock pathways
  • helicopter landing pads
  • grass parking lots
  • fairgrounds
  • landscaping
  • dust abatement
  • dust reduction
  • erosion control
  • parks mobile home parks


Benefits

  • Up to 1/3 to 1/2 the cost of concrete installed.
  • Permeable grid is perfect for storm water management.
  • TRUEGRID is manufactured from 100% post-consumer recycled plastic.
  • Reduce heat island effect in cities.
  • LEED Points on structures and construction sites.
  • TRUEGRID is manufactured from 100% recycled plastic.
  • Allows water to flow directly into the natural aquifers.
  • Dust abatement / dust reduction.
  • Mud Control.
  • TRUEGRID is an alternative to concrete or asphalt. Reduce heat island effect in cities.
  • Optimal design can handle the heaviest loads allowed on parking lots and roadways.
Parking Fire Lanes Erosion Control Construction Areas Landscaping Parks & Recreational Areas

TGP Case Study

TGP Case Study Commercial Truck Parking v21 TGP Case Study

Competition Comparison

The strongest paver made.  6880 psi (unfilled) ; 8020psi (filled).  Competition Comparison. The only permeable paver designed for industrial & commercial parking applications.
Specification TRUEGRID Rolled Pavers Concrete  Pavers
Strength (unfilled) 6880 psi 2100 psi 5000
Strength(filled) 8020 psi 5730 psi 5000
Flexural Strength High None ( rolled paver) High
Weight (lbs/sf) 1.32 0.42 37
Tensile Strength 2852 lbs 458 lbs
Fill rock size Up to 1  ½” Up to 3/8” NA
Staking Not Required Required NA
Installation 1000 sf/hr 322 ft/hr Slow
Recycled content 100% post consumer 100 % 0
Porosity 90% 90% 37%
Wall thickness .150 .104” NA
Paver depth 1.8 1.0” 2”
Cell Size ( ID) 3.2” 2.15” NA
Flexibility Rigid w Flex joints Flexible Rigid
Adjoining cell walls Yes No No
Flex joints Yes No No
Joint type Tab Snap none
Shear Transfer Strength High Low None
Comp1 Competition ComparisonComp2 Competition Comparison Comp3 Competition Comparison
TRUEGRID crushes the competition.

Landscaping

TrueGrid keeps your gravel, dirt, or other filler in place and adds to the overall attractiveness of your landscaping projects.

landscaping en Landscaping

Benefits of installing TrueGrid for landscaping purposes:

  • Permeable surface allows water to flow through
  • Prevents erosion
  • Grass application can still be mowed
  • Gravel application saves on constant replacing of gravel



Cost effective….No more constant replacing of gravel, grass, or other filler due to erosion and foot traffic.

TrueGrid prevents erosion from washing away your hard work.

Keeps your landscaping attractive!

Job Sites

TrueGrid is a reusable, cost effective way to improve your job site and improve your reputation as an environmentally friendly company.

construction en Job Sites

Benefits of installing TrueGrid in job sites:

  • Permeable surface allows water to flow through
  • Able to support heavy vehicles
  • Reusable and portable
  • Time saver
  • Easy clean-up when job is complete
  • Reduces mud & dust problems



Because TrueGrid is quick and easy to lay down, you will save on labor cost, material cost, and clean-up cost.

The fact that it is reusable, will also cut cost….not to mention that you will be more environmentally conscience.

Ideal for temporary staging areas!

Parks & Recreational Areas

TrueGrid controls erosion, flooding, and overall messiness in parks, fairgrounds, and other recreational areas.

parks en Parks & Recreational Areas

Benefits of installing TrueGrid in recreational areas:

  • Permeable surface allows water to flow through
  • Grass application can still be mowed
  • Gravel application saves on constant replacing of gravel
  • Increased pedestrian traffic due to cleaner environment



TrueGrid is able to withstand heavy foot traffic while still protecting the ground’s surface.

Cost effective….No more constant replacing of gravel or grass due to erosion and foot traffic.

Erosion Control

TrueGrid is the frontline solution to erosion control and storm water management.

erosion constrol en Erosion Control

The installation of TrueGrid safeguards from erosion due to:

  • Vehicle traffic
  • Pedestrian traffic
  • Rainfall
  • Flooding waterway currents



Protects level ground or embankments from erosion damage.

TrueGrid stabilizes slopes.

Keeps top and base layer from interblending.

Permeable system controls the flow of water back into the ground and natural aquifers.

Fire Lanes

Fire lanes will not only be durable and permeable, but also economical to install and attractive in appearance.

firelanes en Fire Lanes

Benefits of installing TrueGrid for fire lanes or emergency vehicle access areas:

  • Permeable surface allows water to flow through
  • Able to support heavy vehicles
  • Grass application can still be mowed
  • Grass or gravel applications are attractive in appearance



No more unsightly fire lanes to take away from a building’s design and attractiveness.

Parking

Durable, attractive, and permeable solution for temporary and permanent parking areas.

parking new Parking

Installing TrueGrid in parking areas has many benefits:

  • Permeable surface allows water to flow through
  • Can be cut to fit irregular shapes
  • Grass application can still be mowed
  • Able to support heavy vehicles



Perfect for overflow parking, fairgrounds, and sporting events.

No more muddy parking lots or trudging through wet, sloppy grass when entering or leaving an event.
